VT-7A PRO is a 7-inch rugged tablet with rich functions. Equipped with a Qualcomm 64-bit octa-core processor, the main frequency supports up to 2.0G. The tablet is driven by the Android 13 system and has been officially certified by Google Mobile Services. Built-in communication modules such as GPS, 4G, WiFi, Bluetooth, NFC, which are suitable for various IoT (Internet of Things) applications. VT-7A PRO also has a rich of interfaces including RS232, GPIO, USB, ACC, etc., making it easier to work with more external devices. Its rugged and waterproof features ensure its stability in different outdoor harsh environments.
Product Highlight

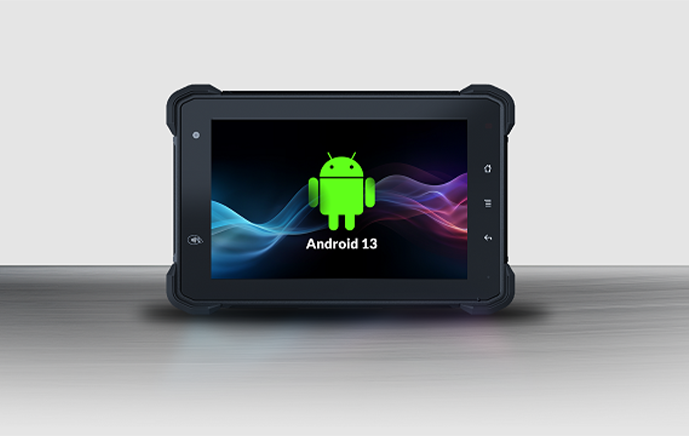

Android 13 (GMS)
With GMS official certification, users can make full use of the services provided by Google. And the certification also ensures the functional stability and compatibility of the device.
Rugged and Durable
Comply with IP67 waterproof and dust proof rating, 1.2m drop resistance, MIL-STD-810G shockproof and impact-resistant standard.
High Brightness Screen
The 7-inch screen with 1280*800 resolution and 1000 nits brightness, ensuring that users can clearly identify the content on the screen in an outdoor environment.
Real-time Communication
It has four satellite systems: GPS, GLONASS, BDS and Galileo, and has built-in LTE CAT4 communication module, which is convenient for tracking management.
ISO 7637 -II
ISO 7637-II transient voltage protection standard, which can withstand 174V 300ms automobile impact. With the design of a wide voltage range DC8-36V power supply to improve the reliability and stability.
Mobile Device Management
Support most MDM software on the market, which is convenient for customers to control and manage equipment in real time.
Rich Interfaces
It has rich interfaces such as RS232, USB, ACC, etc., and is suitable for various kinds of vehicle. We also provide the customized services for required functional interfaces.
OTA
Our technical team will update the security patch to the terminal devices every 3 months.
Specification
| CPU |
Qualcomm Quad-core A73, 2.0GHz and Octa-core A53, 1.8GHz |
| GPU |
Adreno 610 |
| OS |
Android 13 |
| RAM |
LPDDR4 4GB (default)/8GB (optional) |
| Storage |
eMMC 64G (default)/128GB (optional) |
| LCD |
7 Inch Digital IPS Panel, 1280×800, 1000 nits |
| Screen |
Multi-point Capacitive Touch Screen |
| Audio |
Integrated microphone; Integrated speaker 2W |
| Camera |
Front: 5.0 megapixel camera (optional) |
| |
Rear: 16.0 megapixel camera (optional) |
| Sensor |
Acceleration, gyro sensor, compass, ambient light sensor |
| GNSS |
GPS/GLONASS/BDS/Galileo/QZSS, Internal Antenna;External SMA antenna(optional) |
| Mobile Broadband (NA Version) |
· LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
· LTE-TDD: B41, External SMA antenna(optional)
· LTE FDD: B1/B3/B5/B7/B8/B20
|
| Mobile Broadband (EM Version) |
· LTE TDD: B38/B40/B41
· WCDMA: B1/B5/B8
· GSM: 850/900/1800/1900MHz
|
| WIFI |
802.11a/b/g/n/ac; 2.4GHz&5GHz;external SMA antenna(optional) |
| Bluetooth |
2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE;external SMA antenna(optional) |
| NFC (Optional) |
· ISO/IEC 14443A, ISO/IEC 14443B PICC mode
· ISO/IEC 14443A, ISO/IEC 14443B PCD mode designed mode according to NFC Forum
· digital protocol T4T platform and ISO-DEP
· FeliCa PCD mode
· MIFARE PCD encryption mechanism (MIFARE 1K/4K)
· NFC Forum tags T1T,T2T,T3T,T4T and T5T NFCIP-1,NFCIP-2 protocol
· NFC Forum certification for P2P, reader and card mode
· FeliCa PICC mode
· ISO/IEC 15693/ICODE VCD mode
NFC Forum-compliant embedded T4T for NDEF short record
|
| USB |
Type-C×1 (can not be used together with USB Type-A) |
| Micro SD Slot |
Micro SD card×1, Support up to 1T |
| SIM Socket |
Micro SIM Card slot×1 |
| Ear jack |
3.5mm headphone jack compliant with CTIA standard |
| Docking connector |
POGO PIN×24 |
| RS232 |
×2 |
| ACC |
×1 |
| Power |
×1 (8-36V) |
| GPIO |
Input ×3, Output ×3 |
| USB TYPE-A |
USB 2.0×1, (can not be used together with USB Type-C) |
| Analog Input |
×1 (standard); ×2 (optional) |
| CANBUS |
×1 (optional) |
| RS485 |
×1 (optional) |
| RJ45 |
×1 (100 Mbps, optional) |
| AV Input |
×1 (optional) |
